Image Classification Guide

This guide walks you through creating and training an image classification model using AnyLearning. Image classification is a fundamental computer vision task where the goal is to categorize images into predefined classes. For example, you might want to classify medical X-ray images as normal or showing different types of pneumonia, or classify different species of flowers.

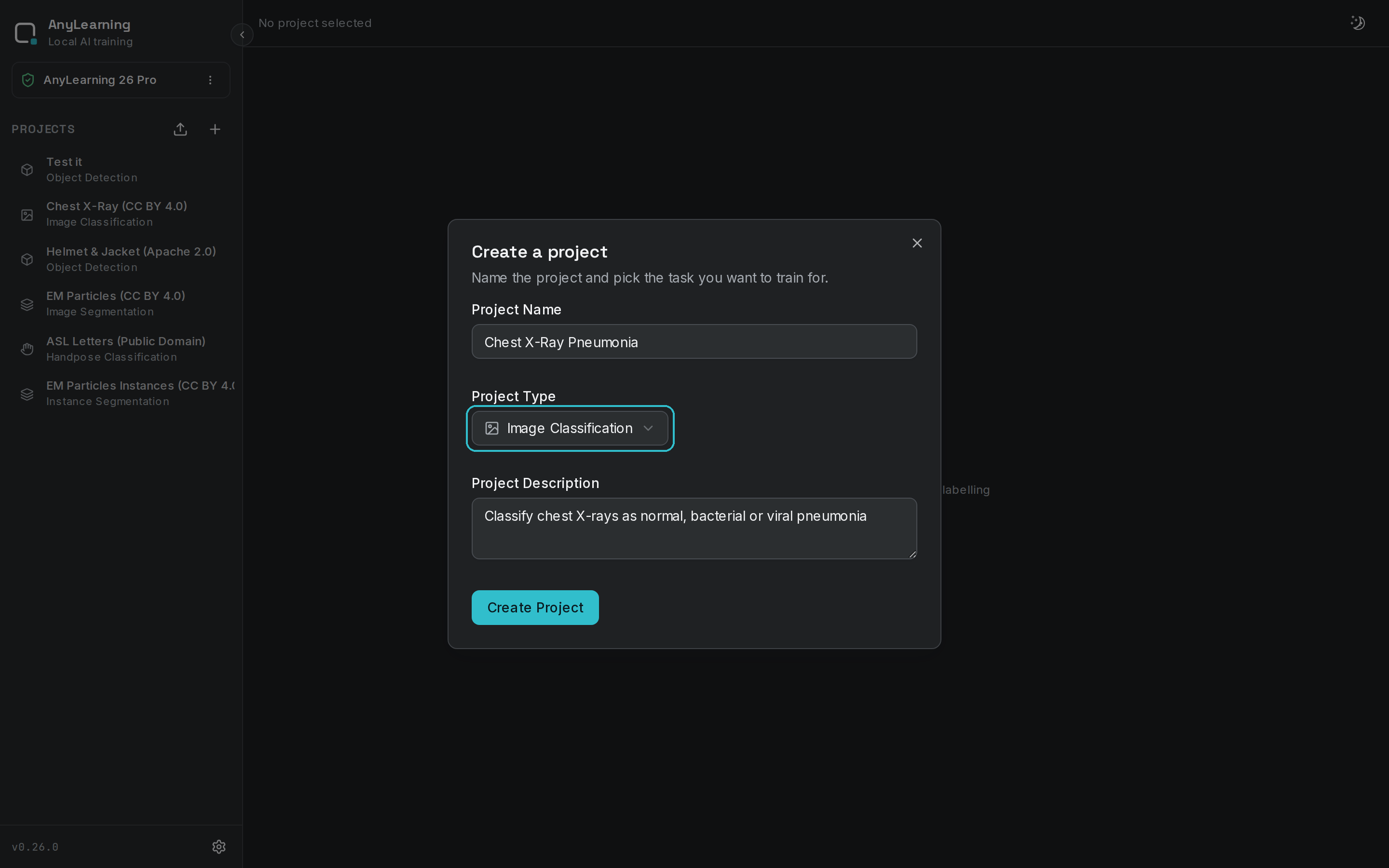

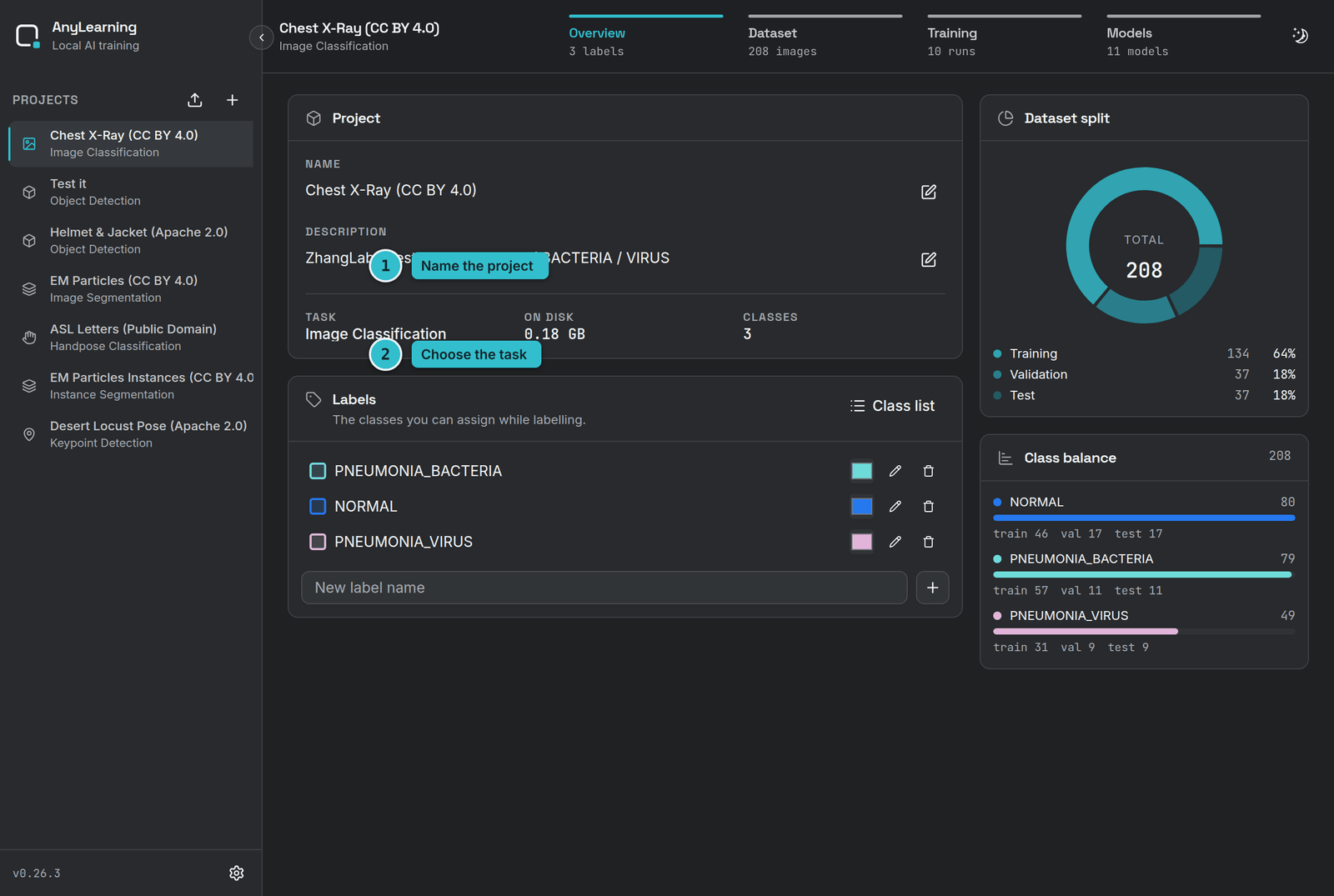

Step 1: Create a Project

First, create a new project specifically for image classification:

1. Click Create project
2. Pick Image Classification as the task
3. Give your project a meaningful name and description

Step 2: Data Preparation

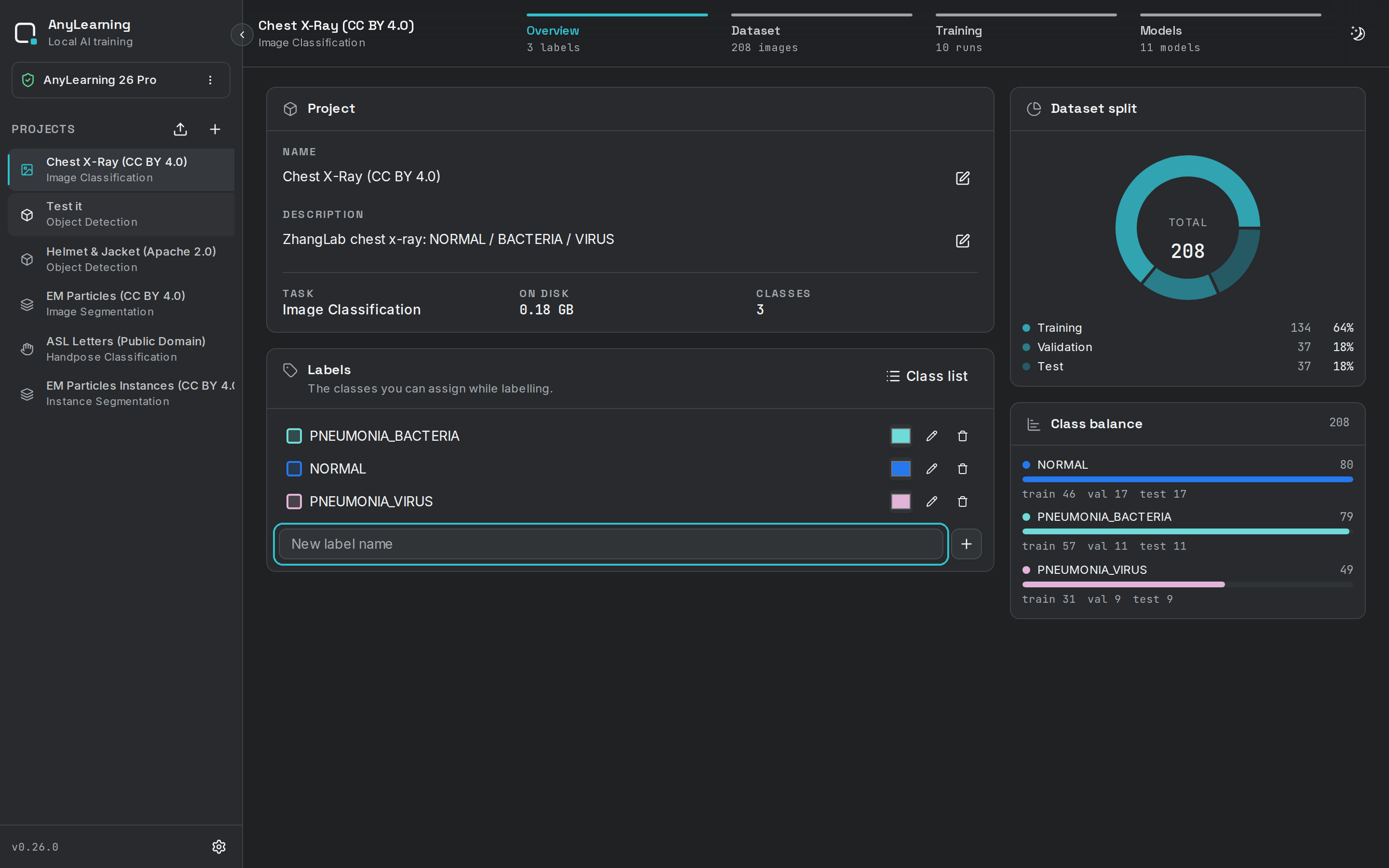

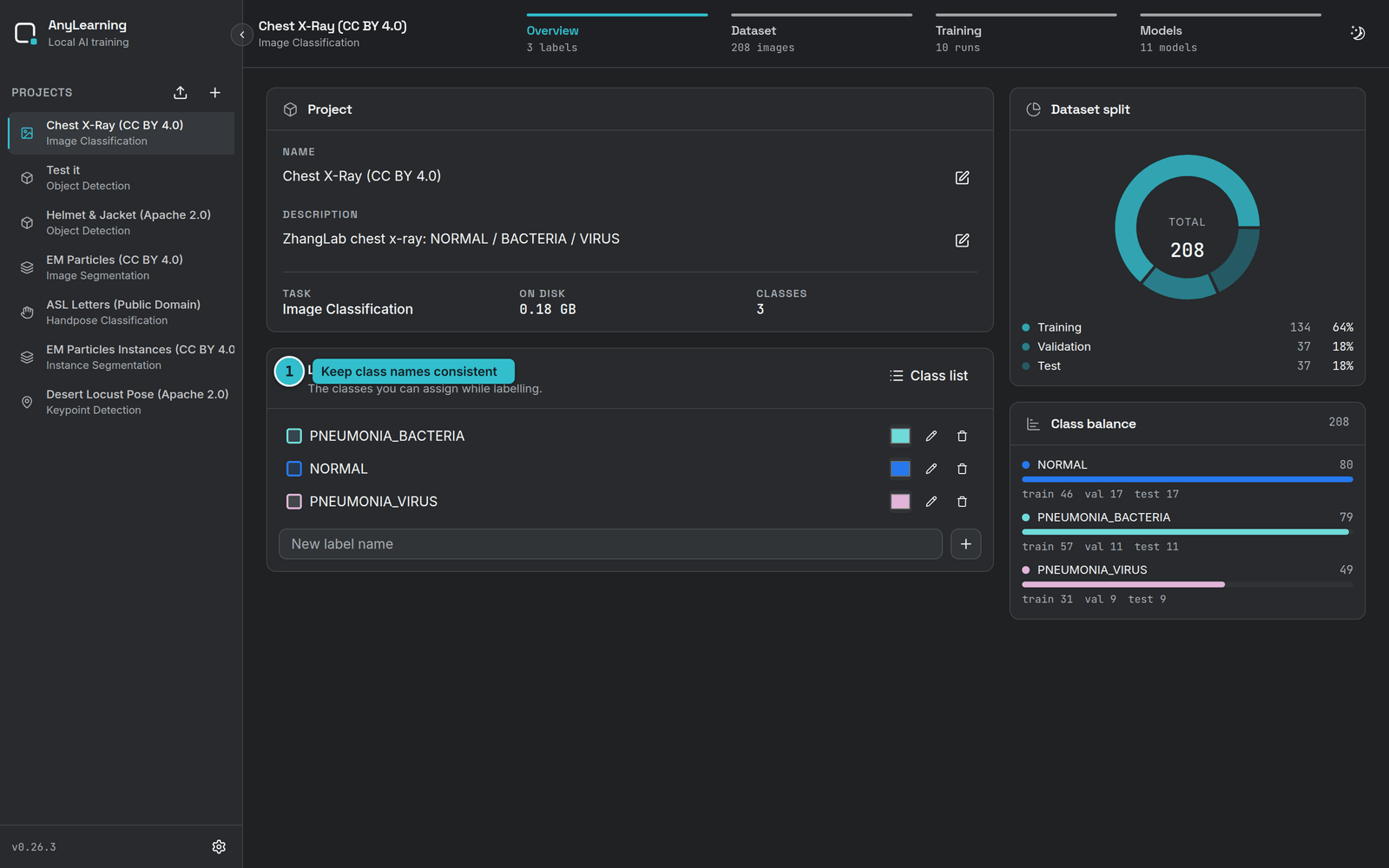

2.1. Create the Label Set

The label set defines all possible classes that your model will learn to distinguish between. For example, in a medical X-ray classification project, your classes might be "NORMAL", "PNEUMONIA_BACTERIA", and "PNEUMONIA_VIRUS".

To create your label set:

1. Navigate to the "Overview" tab
2. Enter each class name individually in the input field
3. Click "+" after each class name
4. Ensure class names are descriptive and consistent

2.2. Upload the Datasets

Go to the "Dataset" tab to manage your datasets.

For effective model training, you need to split your data into three sets:

• Training set: The largest portion (typically 70-80%) used to train the model
• Validation set: A smaller portion (typically 10-15%) used to tune hyperparameters and prevent overfitting
• Test set: The remaining portion (typically 10-15%) used to evaluate the final model performance

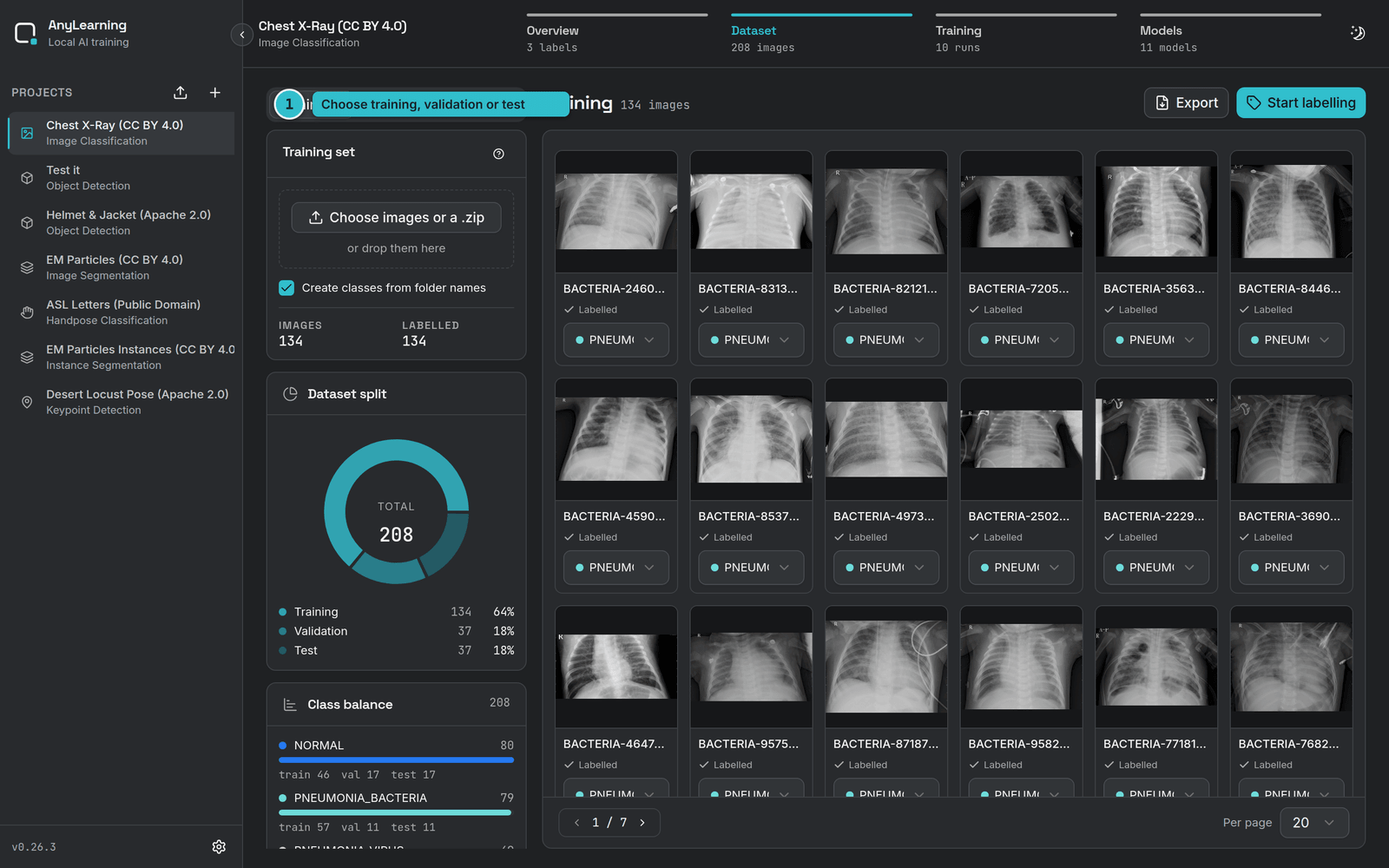

Upload Process:

1. Go to the Dataset tab and choose the Training, Validation or Test set.
2. Click Choose images or a .zip, or drop files straight onto the panel. Several images at once is fine, and so is one .zip per split.

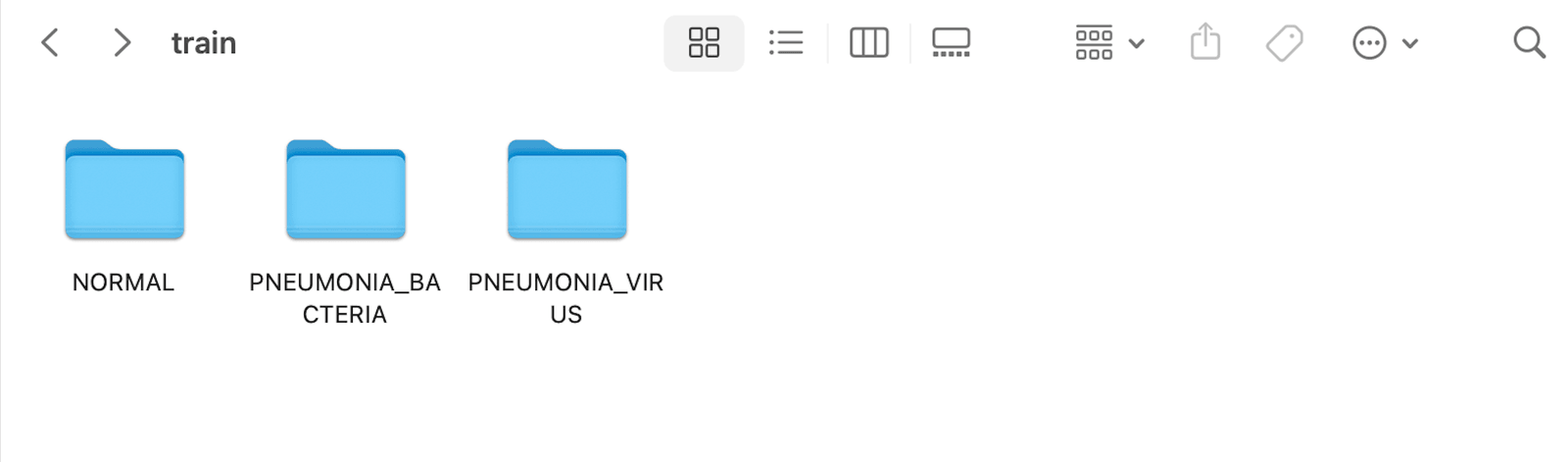

3. Leave Create classes from folder names ticked to take the class list from the folders inside the zip -- one folder per class -- instead of typing each name yourself.
4. Wait for the upload to finish. The image and label counts under the panel update as it goes.

Trial Dataset: We prepared a trial dataset for you to get started. You can download it from Hugging Face (opens in a new tab).

Important: Use different images for training, validation, and testing to ensure accurate model evaluation.

Step 3: Model Training

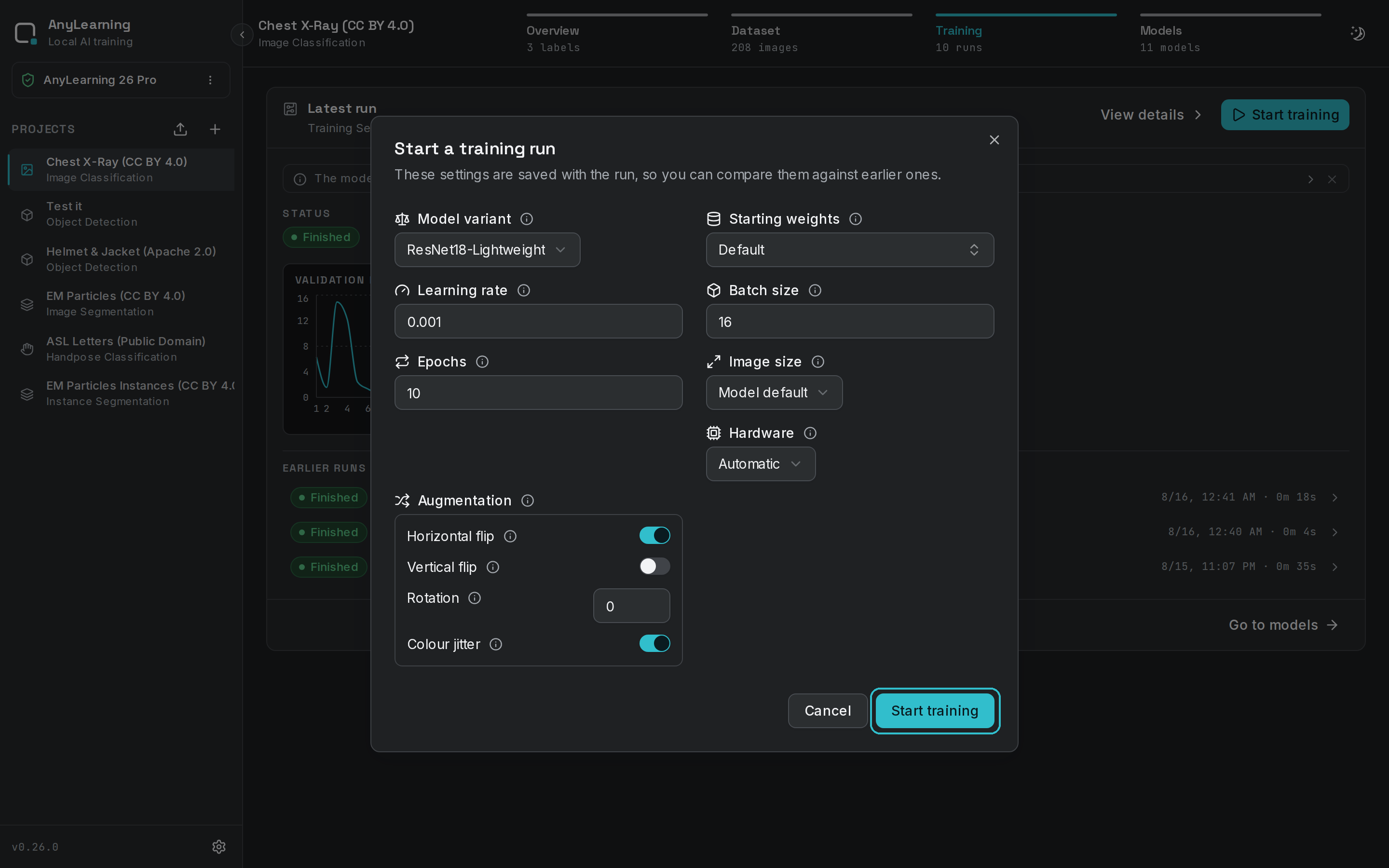

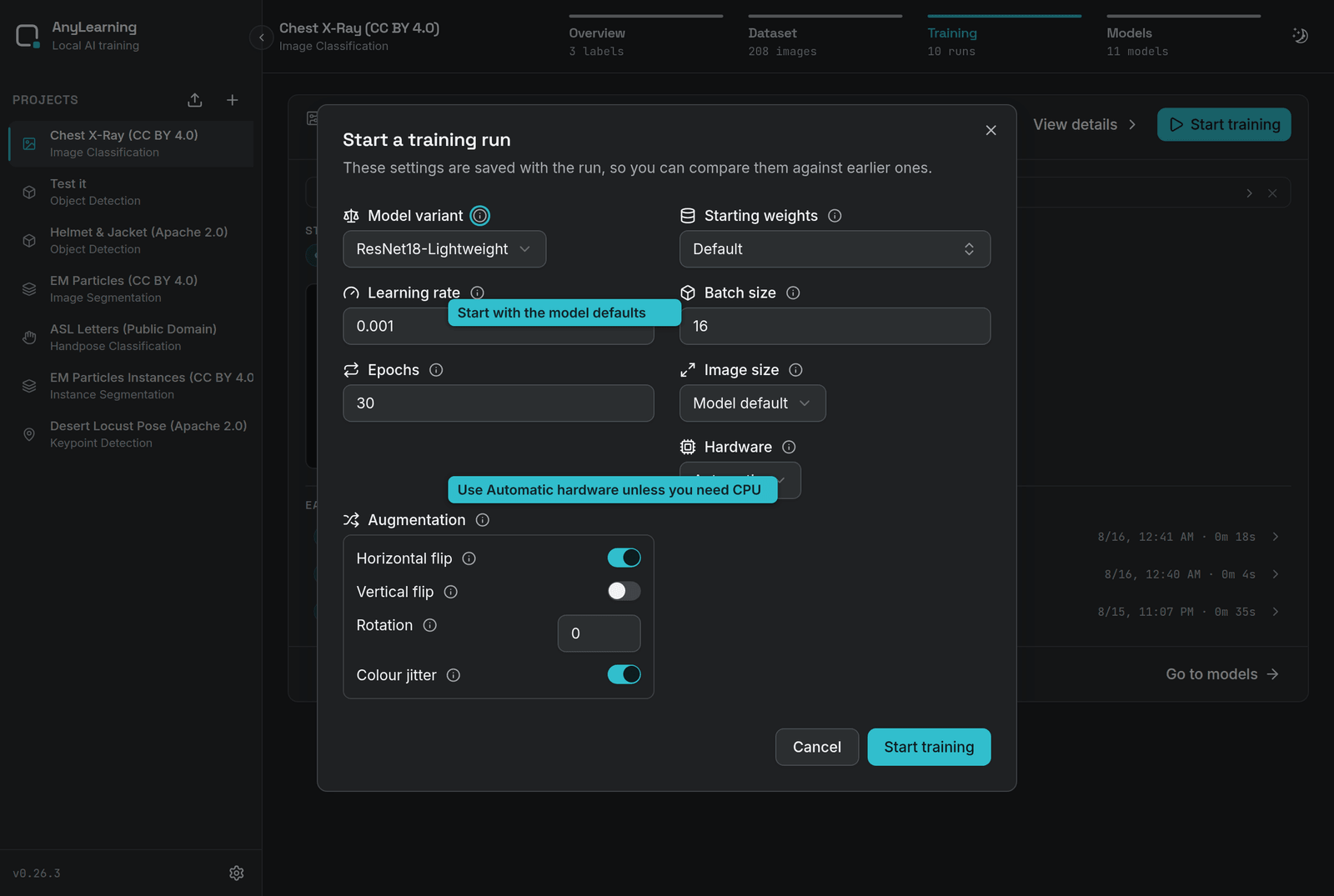

Training Configuration:

1. Go to the "Training" tab

2. Click Start training

3. Configure the following hyperparameters:

   • Model variant: ResNet18-Lightweight or ResNet34-Medium
   • Starting weights: Default starts from the pretrained weights that ship with AnyLearning; pick an earlier model of yours to continue training from it
   • Learning rate: how far the model moves at each step (0.001 is a sensible start)
   • Batch size: how many images are processed together (32 or 64). It must not exceed the number of images in a split, or the run trains on nothing
   • Epochs: how many times the model sees the whole training set
   • Image size: leave at Model default unless your objects are small, when a larger size helps and costs speed
   • Hardware: Automatic uses the GPU when there is one. Choose CPU to leave the GPU free
   • Augmentation: flips, rotation and colour jitter, generating variations of your images so the model sees more than it was given

   Every setting has an ⓘ beside it that explains it in place.

4. Click Start training in the dialog to begin

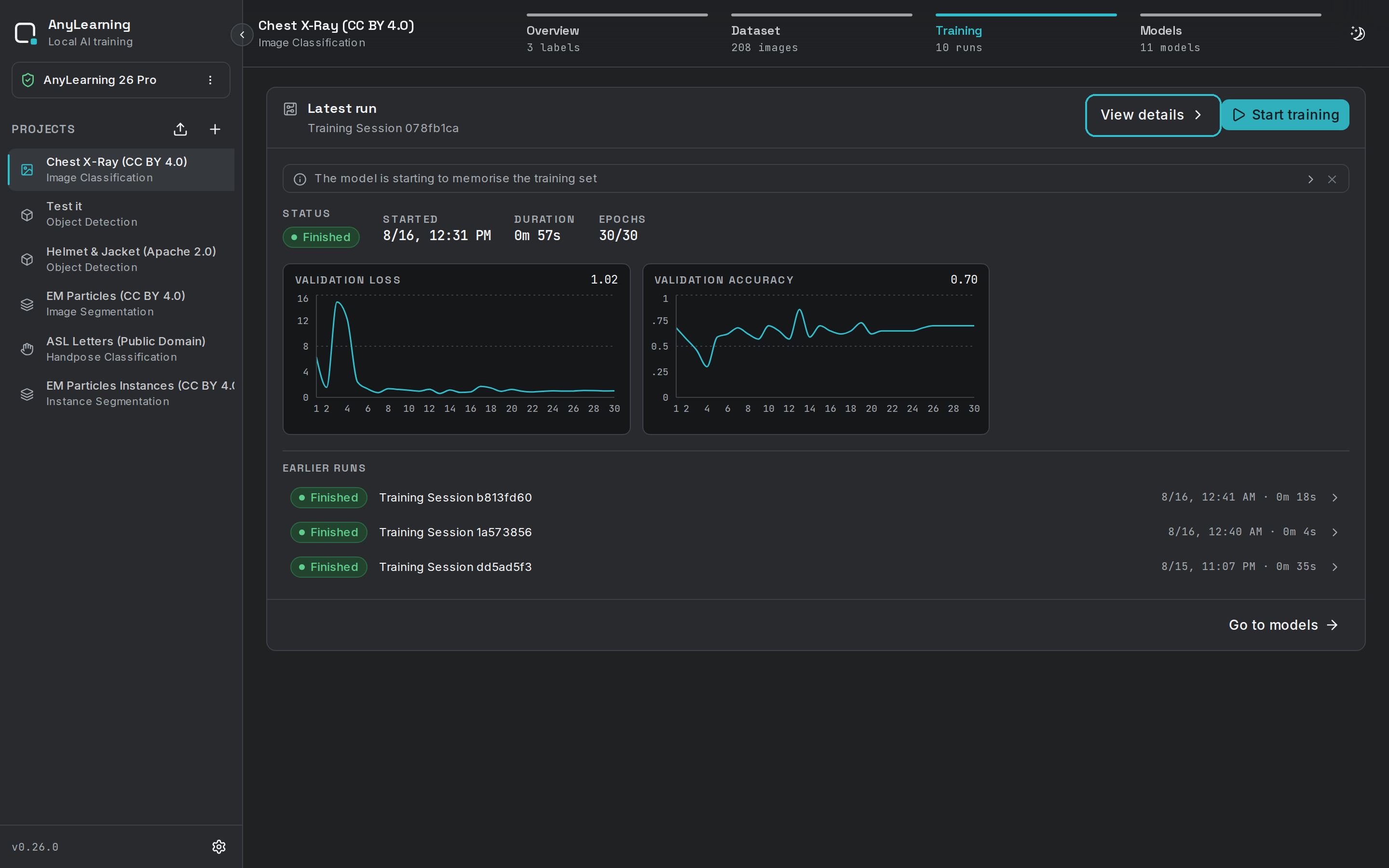

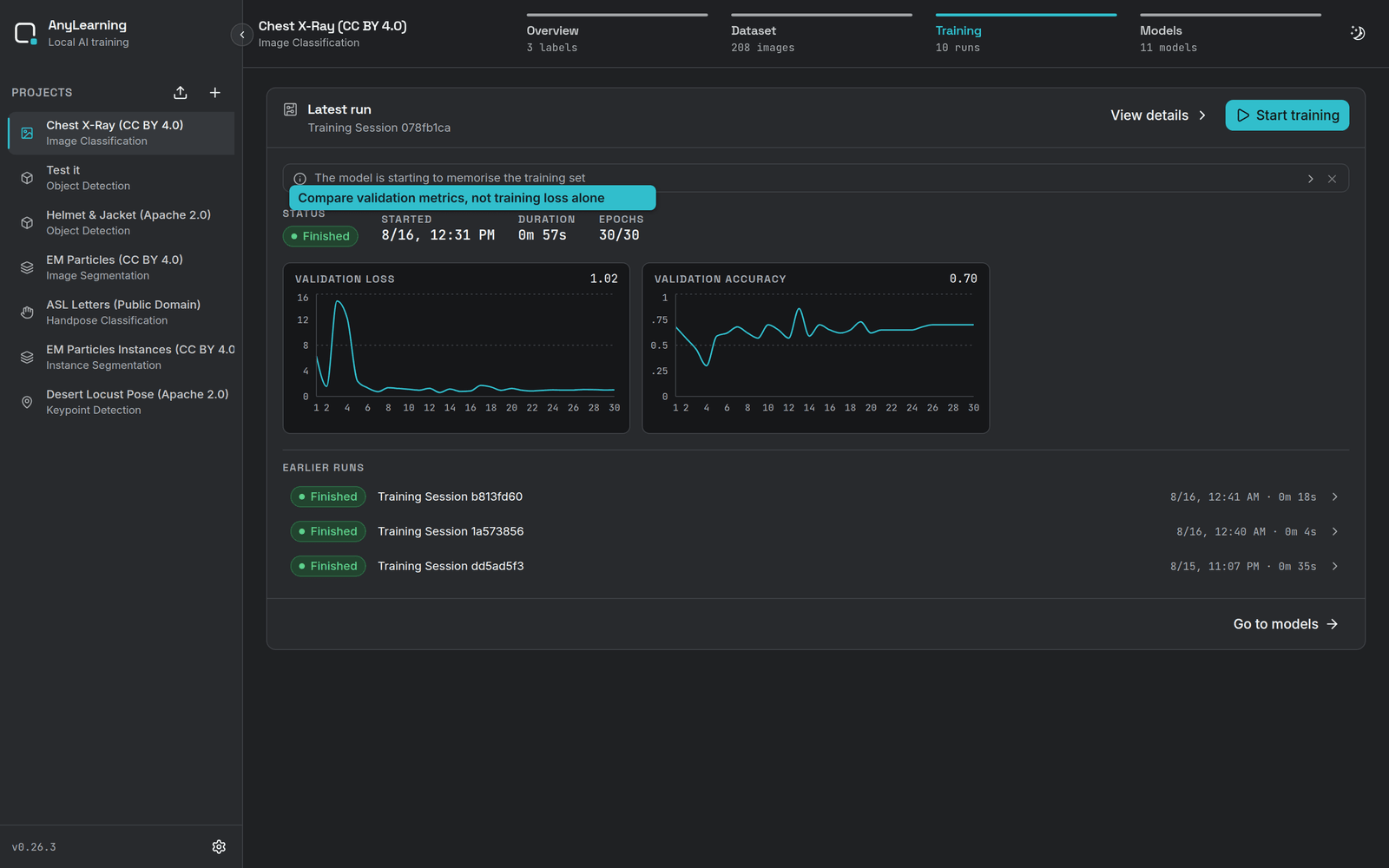

Monitor Training Progress:

• View all training sessions in the "Training" tab

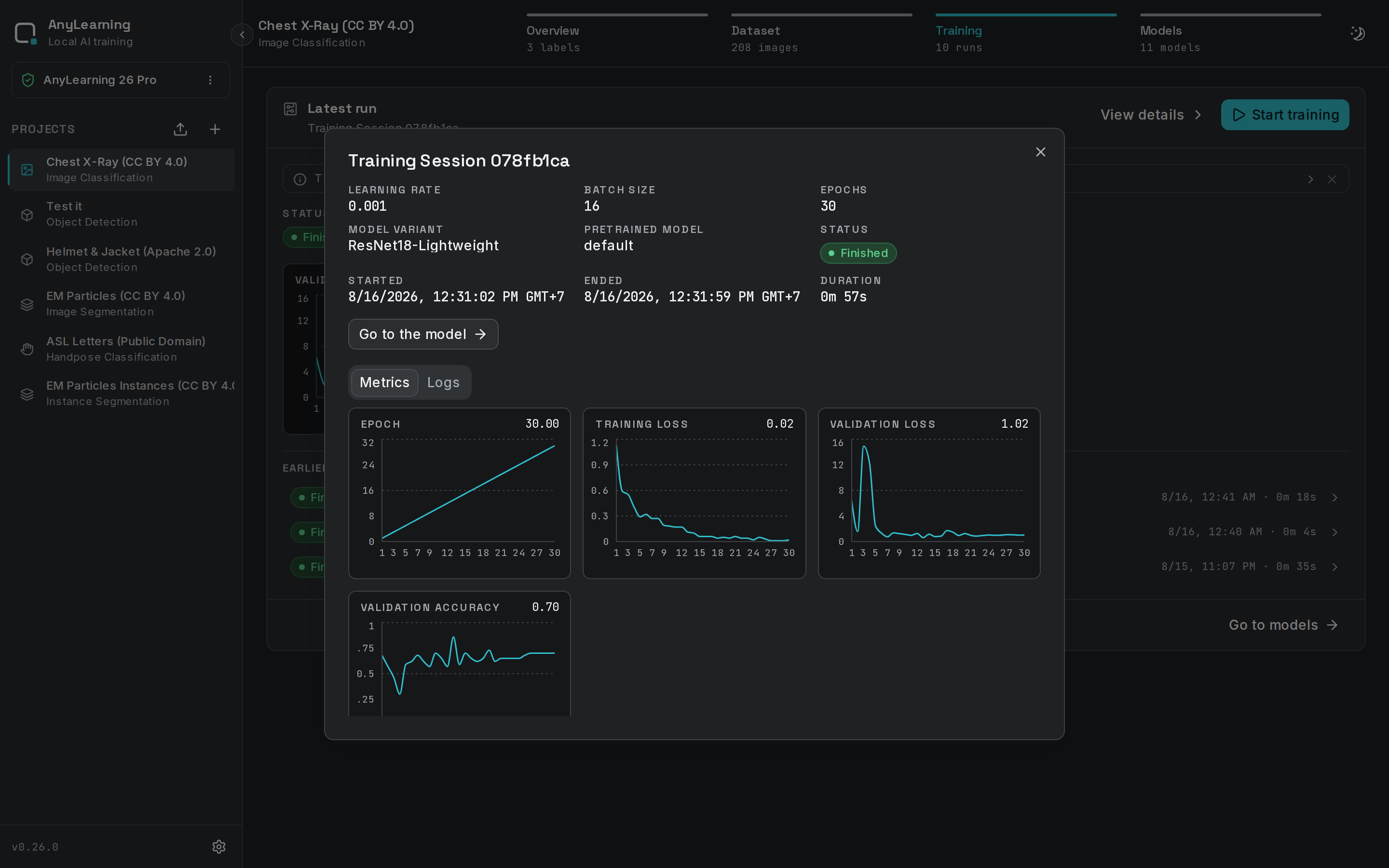

• Click on any session to see detailed information

Training Metrics and Logs:

• Monitor loss values to ensure the model is learning
• ✅ Check accuracy metrics on validation data
• View training logs for detailed progress information
• Watch for signs of overfitting (validation metrics getting worse)

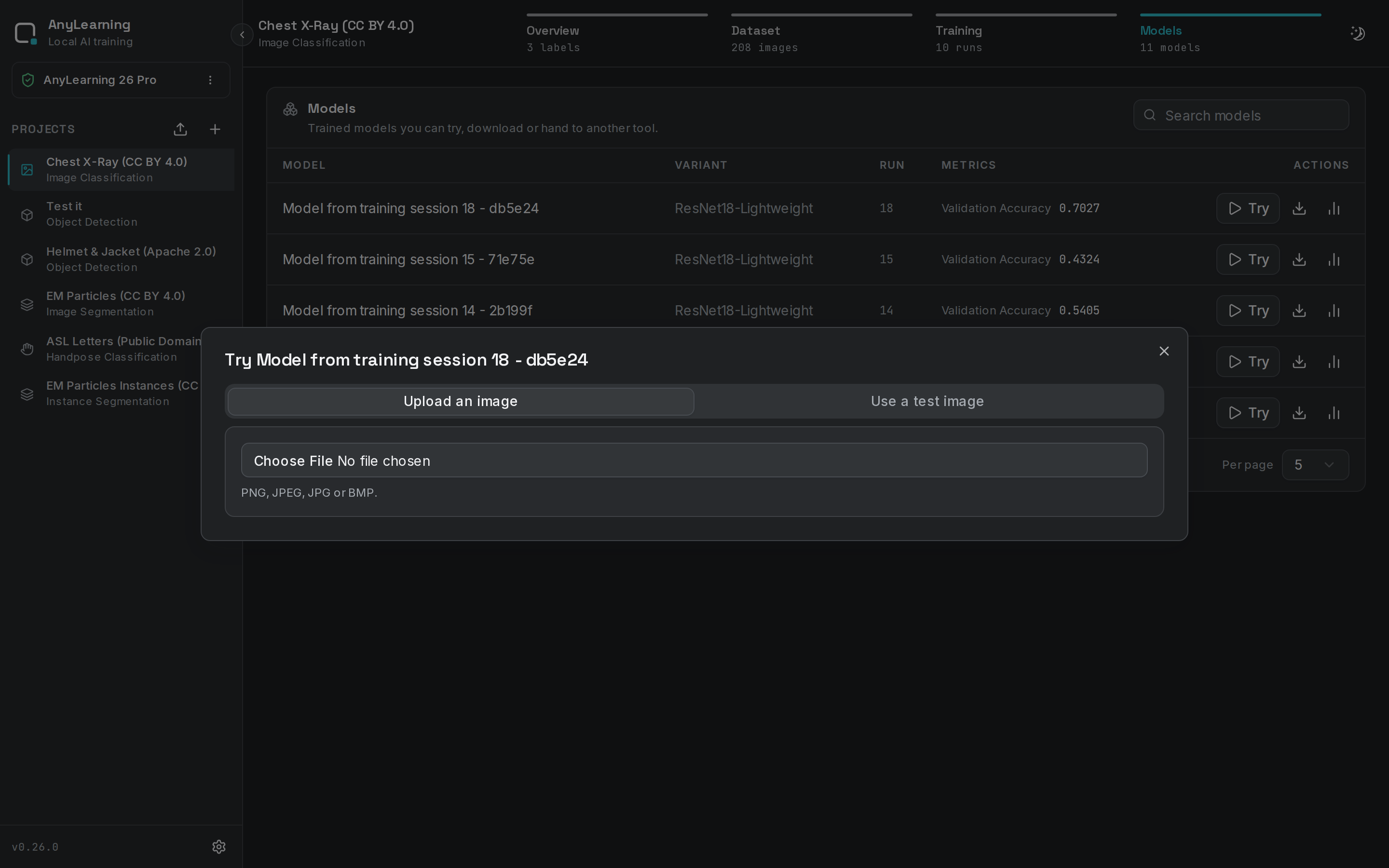

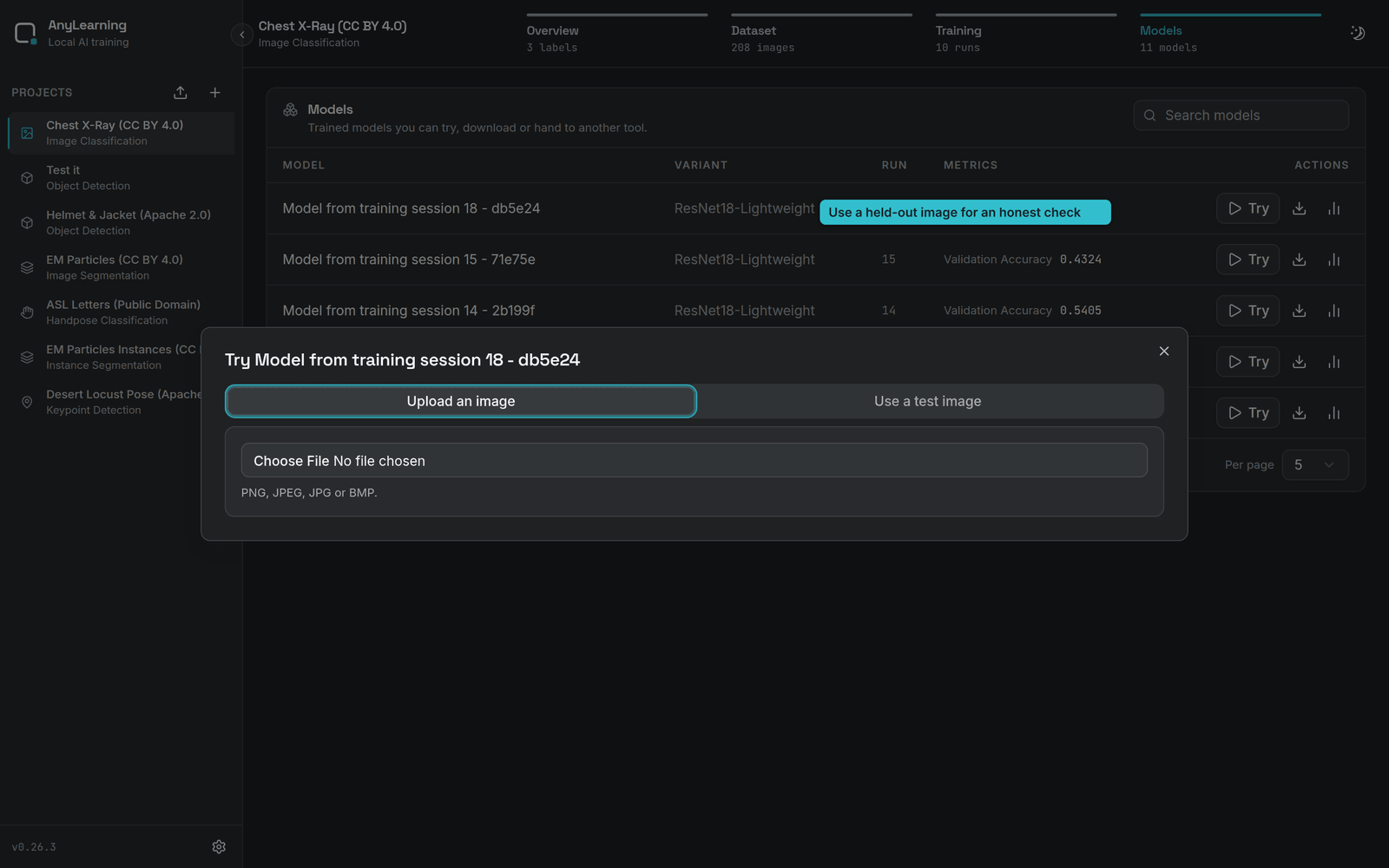

Step 4: Test the Trained Model

After training completes, validate your model's performance:

1. Go to the Models tab
2. Click Try on the model you want to check
3. Choose Use a test image to take one from your test split, or Upload an image for a picture the model has never seen
4. Analyze the model's predictions

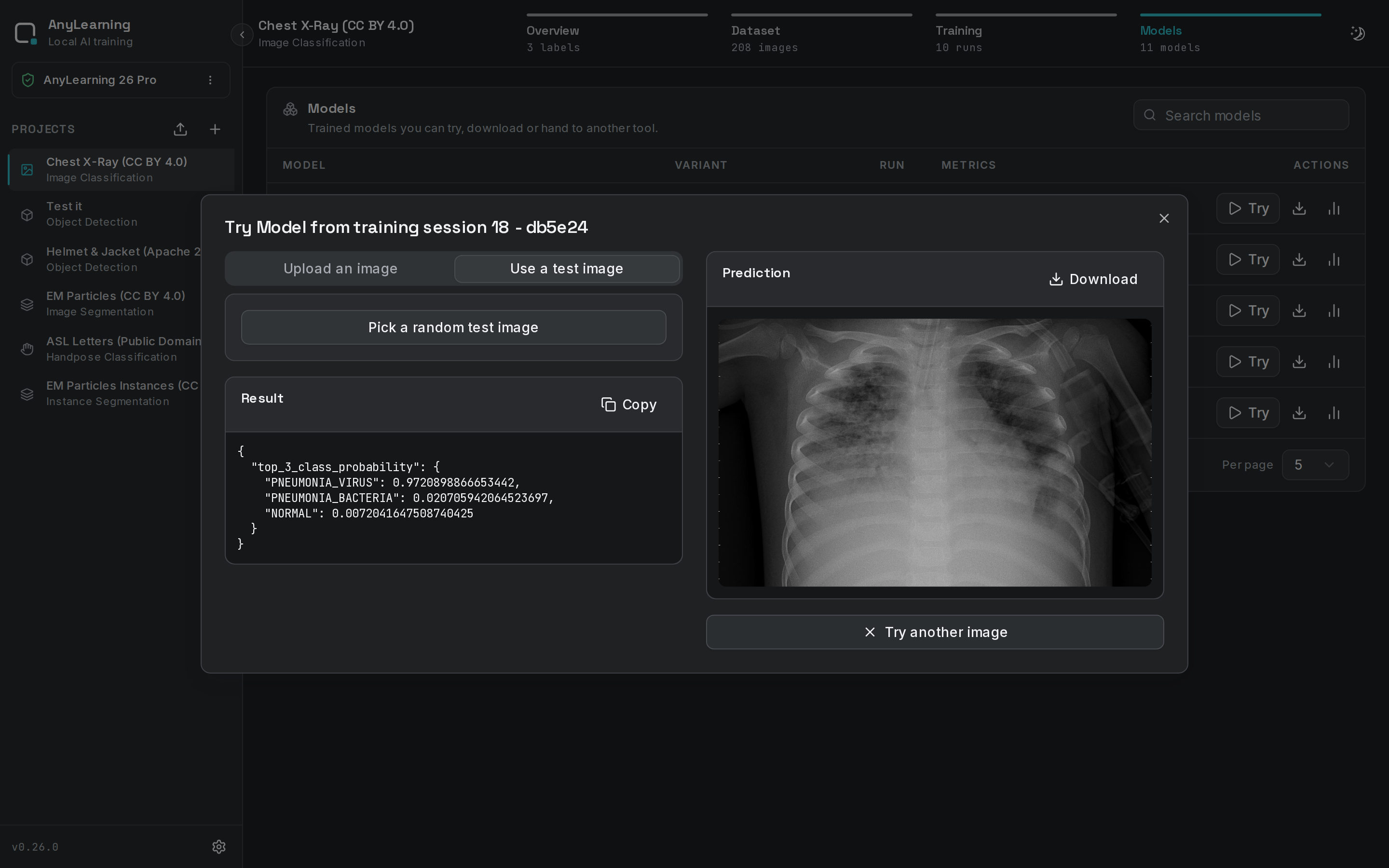

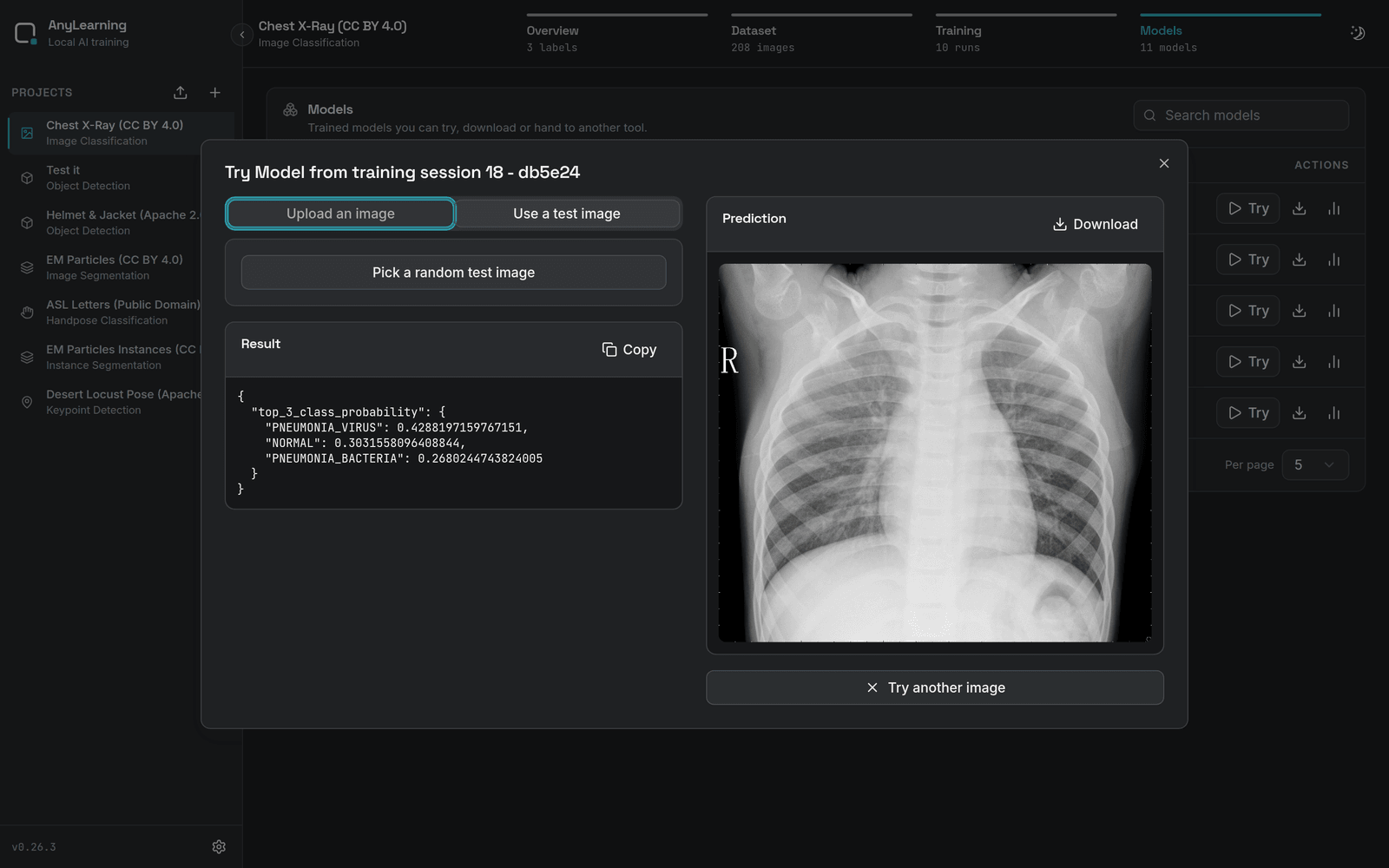

The model will display its prediction along with confidence scores for each class:

Step 5: Export the model and use with your code

Use the download button on the model's row and pick Raw Model for the PyTorch checkpoint, or ONNX Model for the exported graph. The ONNX download arrives as a zip holding the .onnx file and the config.yml the run was trained with -- unzip it before using the code below.

The inference code is shown below.

5.1. Raw (Pytorch) model usage

• Install the necessary libraries:

pip install numpy torch torchvision Pillow

• Run the code:

import torch
from torchvision import transforms
from PIL import Image

MODEL_PATH = "best_model.pth" # Raw (Pytorch) model file
IMG_SIZE = 416
CLASS_NAMES = ["NORMAL", "PNEUMONIA_BACTERIA", "PNEUMONIA_VIRUS"] # The class names that have been defined in the Overview tab
IMAGE_PATH = "test_image.jpeg"


def get_transformations(img_size):
    transform = transforms.Compose(
        [
            transforms.Resize((img_size, img_size)),
            transforms.ToTensor(),
            transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
        ]
    )
    return transform

model = torch.load(MODEL_PATH)
model.eval()
transform = get_transformations(IMG_SIZE)
pil_image = Image.open(IMAGE_PATH).convert("RGB")

inp = transform(pil_image)
inp = inp.unsqueeze(0)
with torch.no_grad():
    output = torch.softmax(model(inp)[0], dim=-1)

# Make a dictionary (class name -> prediction)
predictions = {}
for i, class_name in enumerate(CLASS_NAMES):
    predictions[class_name] = output[i].item()

# Sort the predictions by confidence
predictions = dict(sorted(predictions.items(), key=lambda item: item[1], reverse=True))

# display top 5 predictions (if number of classes is less than 5, display all)
top_k = min(5, len(predictions))
top_k_predictions = {k: predictions[k] for k in list(predictions)[:top_k]}
result =  {f'top_{top_k}_class_probability': top_k_predictions}

print(result)

5.2. Exported (ONNX) model usage

• Install the necessary libraries:

pip install numpy torch torchvision onnxruntime Pillow

• Run the code:

import onnxruntime as ort
import numpy as np
from PIL import Image
import torchvision.transforms as transforms

MODEL_PATH = "exported_model.onnx" # Exported ONNX model file
IMG_SIZE = 416
CLASS_NAMES = ["NORMAL", "PNEUMONIA_BACTERIA", "PNEUMONIA_VIRUS"] # The class names that have been defined in the Overview tab
IMAGE_PATH = "test_image.jpeg"

def softmax(x):
    max_x = np.max(x, axis=0)
    return np.exp(x - max_x) / np.sum(np.exp(x - max_x), axis=0)

def get_transformations(img_size):
    transform = transforms.Compose(
        [
            transforms.Resize((img_size, img_size)),
            transforms.ToTensor(),
            transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
        ]
    )
    return transform

# Load the ONNX model
ort_session = ort.InferenceSession(MODEL_PATH)

# Prepare the input
transform = get_transformations(IMG_SIZE)
pil_image = Image.open(IMAGE_PATH).convert("RGB")
inp = transform(pil_image)
inp = inp.unsqueeze(0).numpy()

# Run inference
outputs = ort_session.run(None, {ort_session.get_inputs()[0].name: inp})
output = softmax(outputs[0][0])

# Make a dictionary (class name -> prediction)
predictions = {}
for i, class_name in enumerate(CLASS_NAMES):
    predictions[class_name] = output[i].item()

# Sort the predictions by confidence
predictions = dict(sorted(predictions.items(), key=lambda item: item[1], reverse=True))

# display top 5 predictions (if number of classes is less than 5, display all)
top_k = min(5, len(predictions))
top_k_predictions = {k: predictions[k] for k in list(predictions)[:top_k]}
result =  {f'top_{top_k}_class_probability': top_k_predictions}

print(result)
